AVO®415 TRMS Digital Multimeter with VFD Measurement 1015-515-1
The AVO®415 CAT IV 600V/CATIII 1000V safety rated True RMS digital multimetre meeting IP67 and comes with advanced features such as VFD measurement.
- CAT IV 600 V/CAT III 1000 V Rated
- VFD AC Voltage Up To 700 V
- IP67 dustproof and waterproof protection

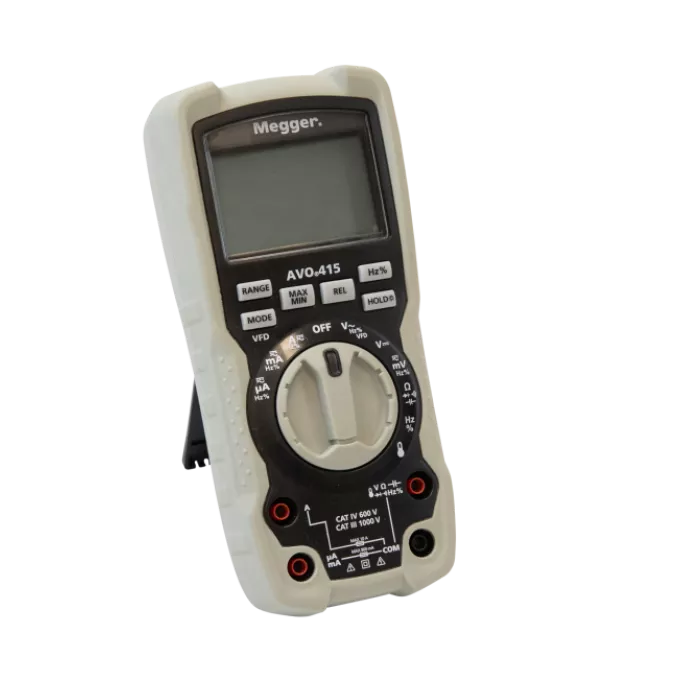

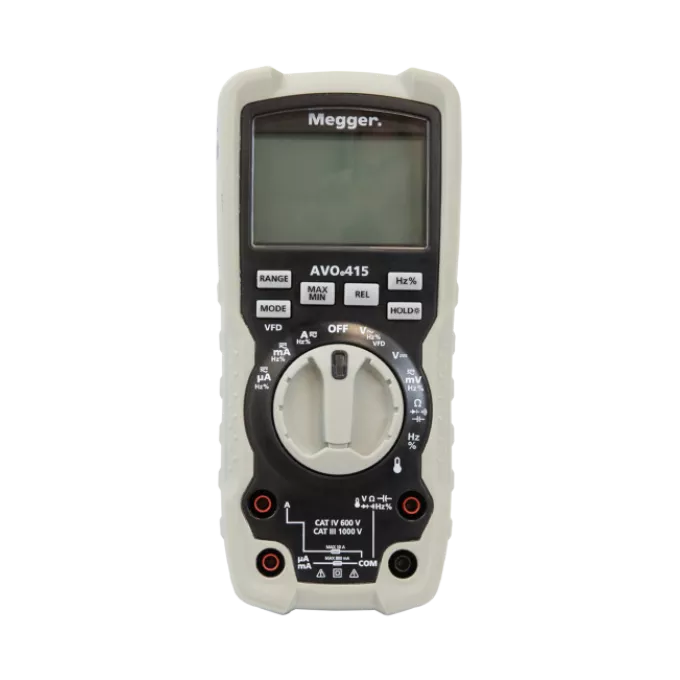

AVO®415 TRMS Digital Multimeter with VFD Measurement
The AVO® is a heavy duty industrial True-RMS meter for demanding environments. It measures True RMS voltage up to 1000 V and current to 10 A with 6000 count resolution. As well as resistance, continuity, frequency, and capacitance for quick verifications. It meets CAT III 600 V CAT IV 1000 AC/DC safety and features. Its Variable frequency drive (VFD) measurement making it ideal for wide range of applications.
The continuity function features a buzzer to provide audio and visual results. Diode function allows forward reverse bias testing of diode and semiconductor junctions.
Auto ranging or manual range selection allows precision and speed to do the job. Also comes with MAX, MIN and hold function allowing ease of readability in daily use.
- Safety rated CAT III 1000 V, CAT IV 600 V
- True RMS AC current and voltage
- High resolution 6000 count display
- Frequency up to 10 MHz
- Resistance, continuity and diode measurements
- Current measurement to 10 A
- Variable Frequency Drive (VFD) voltage measurement
- 100 mF capacitance range
- Bright back-light display
- IP67 Dust-proof and waterproof rated
- Designed and tested to withstand 2 m drop
