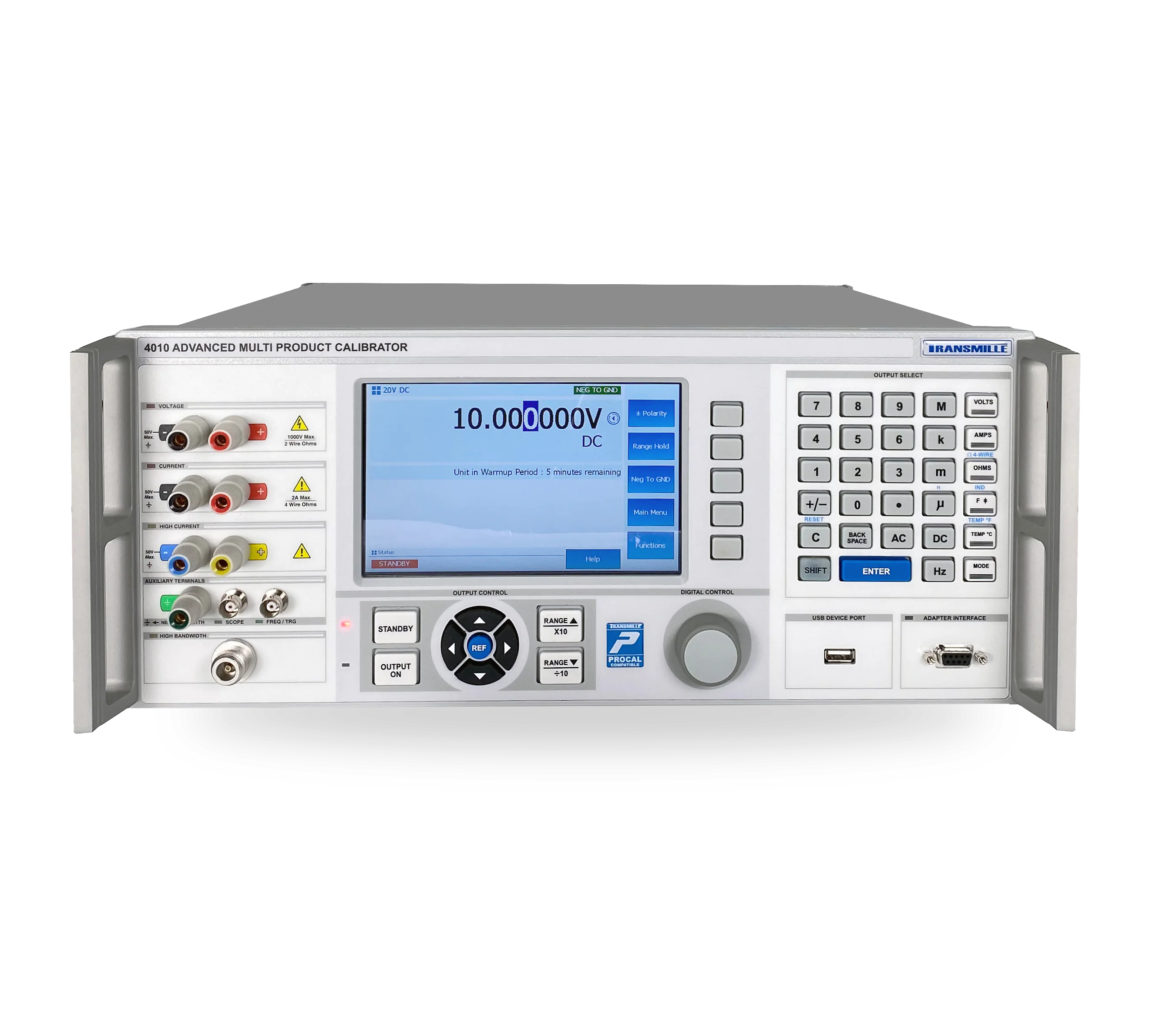

Transmille 4000 Series Multi-Product Calibrators

The 4000 is Transmille’s most advanced calibrator, designed for high precision calibration of a wide range of instrumentation to 8.5 digits.

The 4000 Series is aimed at laboratories, manufacturers, and design facilities requiring a wide range of outputs with accuracies up to 8 ppm.

The 4000 Series builds on the trusted reliability of the 3000A Series, offering an updated user interface accessed through a large, 7″ touch screen to enable advanced functionality, including a built-in procedure mode and connection prompts, to minimize errors. USB printer capability supports production line automated test reporting without need for a PC and software.

Overview
Features
Support

Transmille

Transmille 4000 Series Multi-Product Calibrators

Overview

INNOVATIVE PROTECTION CIRCUITRY

The 4000 Series is protected by Transmille’s I-GUARD protection circuitry protecting the calibrator against accidental damage through wrong connections up to ± 1000V RMS.

All Transmille calibrators have been protected by I-GUARD since 2006

ILLUMINATED LOW THERMAL CONNECTION TERMINALS

Fitted with low thermal beryllium copper terminals, the 4000 Series enables connection with 4mm banana jacks, spades and bare wire without the need for additional adapters.

LED illumination identifies which terminals should be connected to depending on output settings of the calibrator

ADVANCED OSCILLOSCOPE CALIBRATION FUNCTIONALITY

Expanding the outputs offered by the 3000A Series, the 4000 Series provides an advanced oscilloscope calibration option with bandwidth calibration of up to 600 MHz with variable level. This expands the calibration workload to include spectrum analyzers and high bandwidth oscilloscopes.

Procedures can be loaded into the 4000 Series via USB memory stick, with results stored for integration back into ProCal software.

The 4000 Series also provides USB printer connectivity standard, supporting a wide range of PCL-compliant printers.

SOFTWARE COMPATIBILITY

As with all Transmille products, compatibility with ProCal calibration software is guaranteed. Existing procedures will not need to be re-written, due to Transmille’s unique implementation of flexible standards support where procedures are written around the UUT, not the standard.
